Description

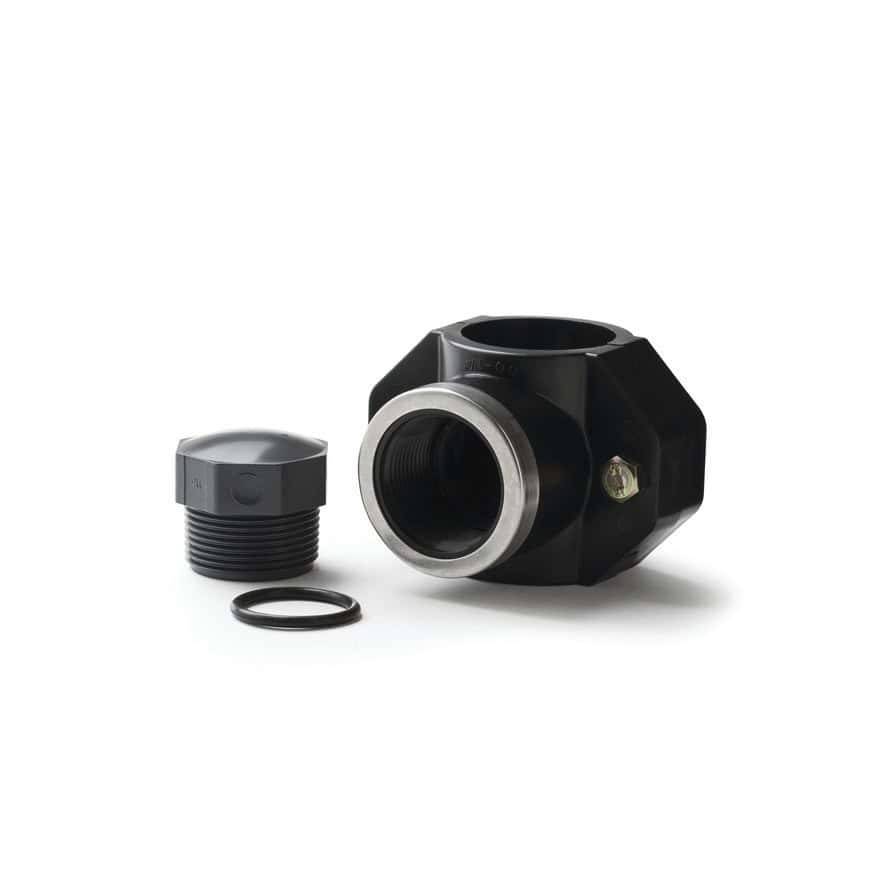

Tapping saddle diam. 50 mm for electrode for BL12x/BL13x/HI5x0 (BL120-550)
You have brought home a fine Hanna pool controller, but then the question arises: how do you mount that pH or chlorine electrode neatly and leak-free in your pipe? A probe that hangs loose in a bucket or is half-clamped in a fitting gives unreliable readings and guaranteed leaks. This tapping saddle from Hanna Instruments (item code BL120-550) solves exactly that problem. It is the official mounting piece for placing your electrode directly and watertight in a 50 mm PVC pipe.
With this saddle, your probe measures permanently in the flow of your pool, spa or hot tub system, so that your controller continuously receives a representative and stable signal.
Does this saddle fit your installation?
The saddle is made for a PVC pipe with a diameter of 50 mm and has a 1¼” thread for the electrode. It is intended for inline mounting on the Hanna pool controllers from the BL12x, BL13x and HI5x0 series, including for example the BL-131 and BL-132, which automatically measure and control your pH and free chlorine. Do you have a thicker pipe? Then take a look at the versions for 63 mm or 75 mm; for the standard 50 mm pipe, this is the right one for you.
Worry-free installation
The saddle is supplied with the matching sealing O-ring, which you place in the upper part of the saddle for a reliable watertight connection. For installation, you drill an opening in the PVC pipe of 29 to 32 mm. Equally important: after drilling, remove the burrs and lightly sand the surface so that the rubber O-ring seals perfectly. Then you screw the electrode into the saddle and everything is in place.
Handy when calibrating
A pleasant detail: once the probe is in the saddle, you can carry out a single-point pH calibration to align the measured value with your handheld meter — without removing the electrode from the saddle. This saves hassle and keeps your measurements accurate in the long term.
Not sure whether this is the right saddle for your controller or pipe size? Feel free to ask your question; at Pool.shop we're happy to help you towards a reliable measuring set-up.
