Description

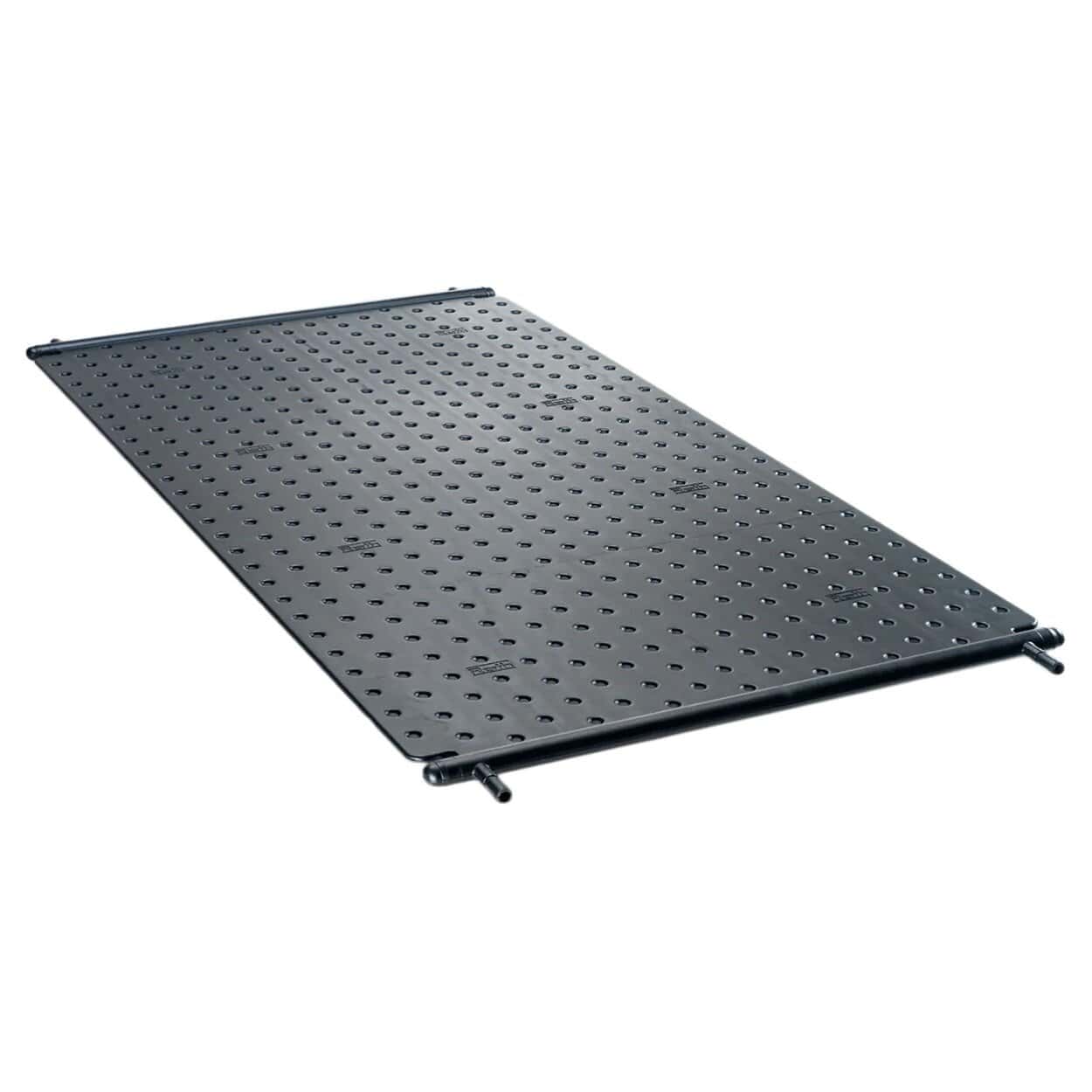

Roth Heliopool solar collector 110 x 110 cm
Would you like to heat your pool in an energy-efficient way? With the Roth Heliopool solar collector 110 x 110 cm, you make use of free solar energy to bring your pool water to a pleasant temperature. Ideal for those who want to extend the swimming season without high energy costs.
This compact solar collector is made of high-quality black HDPE, which ensures excellent heat absorption. Thanks to the efficient flow, pressure loss remains minimal, and your existing pool pump works optimally together with the system. The panel has a surface area of approximately 1.11 m² and is also strong enough to be walked on.
Sustainable and efficient pool heating
The solar collector converts sunlight into heat and transfers it directly to the water flowing through the panel. This makes the system:
- Energy-efficient and environmentally friendly
- Low maintenance
- Suitable for long-term use
By combining multiple panels, you can easily adjust the capacity to the size of your pool.
How many solar collectors do you need?
For good performance, a collector surface of approximately 70% of the pool surface area is usually recommended.
Example:
- A pool of 6 x 3 metres = 18 m²
- 18 x 0.7 = 12.6 m² of collectors required
- 12.6 / 1.11 ≈ 12 panels needed (rounded up)
This way, you perfectly tailor the system to your situation.
Flexible connection options
The solar collector has 8 connection points:
- 4 connections of 25 mm
- 4 connections of 40 mm
This allows you to flexibly connect the panels and adapt them to your installation. Unused connections can easily be sealed off with end caps.
Installation tailored to your situation
The Roth Heliopool solar collectors can be installed in various ways:
- On a flat roof
- On the ground next to the pool
- On a sloped roof with mounting sets
For a stable installation, it is important to secure the panels properly and protect them against wind load, for example with mounting rails or mounting sets.
